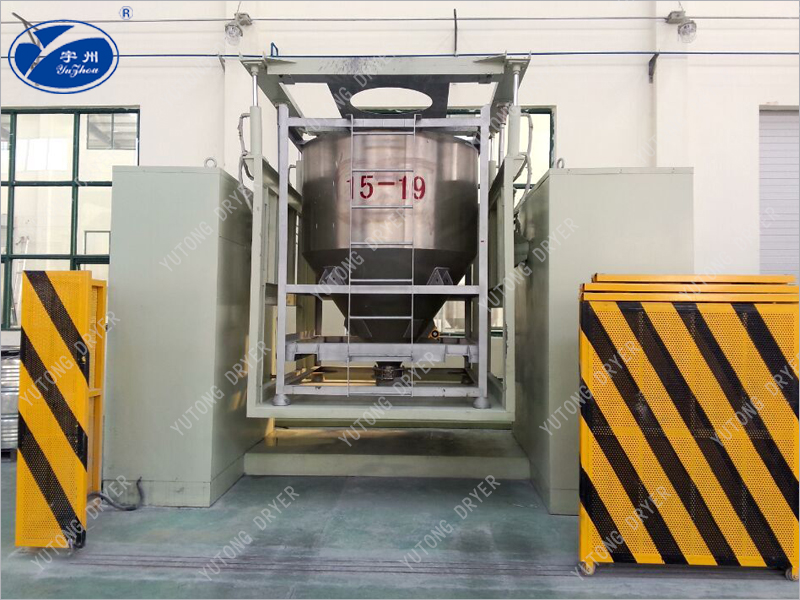

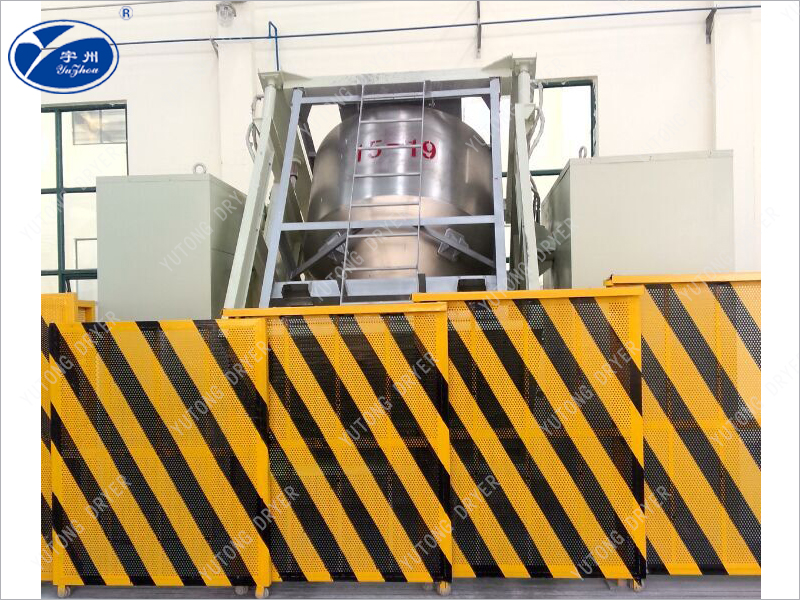

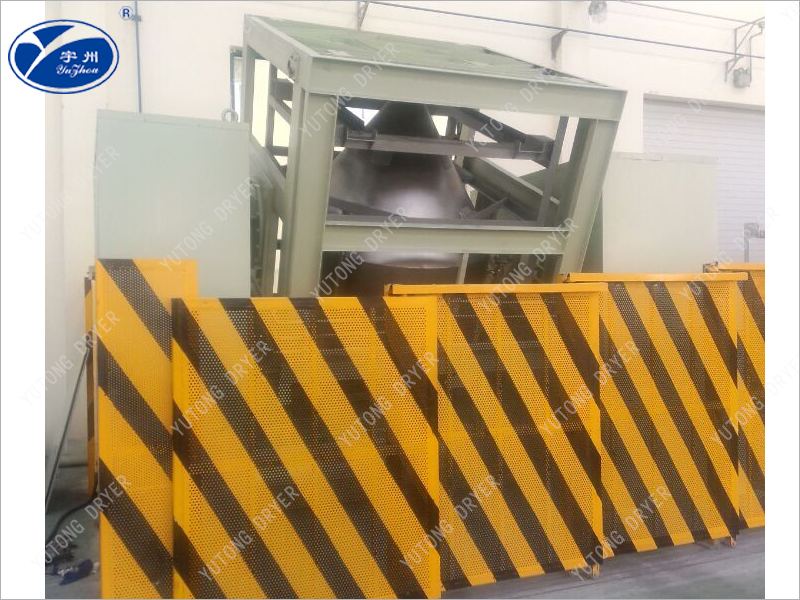

The hopper mixer is a commonly used mixing equipment for solid powder and granular drugs in the pharmaceutical industry. It has high mixing uniformity and a movable hopper, which greatly facilitates loading, mixing, discharging, and cleaning; It can be organically connected with the front and rear process equipment to form a production line, effectively overcoming the cross pollution and dust caused by repeated material transfer; This machine can be equipped with hoppers of different specifications to meet the mixing requirements of large quantities and multiple varieties. This machine is used for general mixing and batch mixing in pharmaceutical factories, and also has a wide range of applications in industries such as chemical, food, and light industry.
Based on extensive absorption and in-depth research of various domestic and foreign models, Jiangsu Yutong has carefully developed the HLD series hopper mixer after three years of absorption, digestion, comparison, and research, combined with national conditions.
The characteristic of the hopper mixer is that the rotating body (hopper) forms a 30 ° angle with the rotating axis. As the hopper rotates and flips up and down, it also undergoes tangential motion along the bucket wall. The combination of these two movements makes the trajectory of each particle complex and varied, constantly changing its position and achieving a good mixing effect.
1、the machine structure is reasonable, the use of double screw lifting, electric rotation, flexible shaft is more suitable for China's national conditions. More stable and reliable performance; Easier maintenance and maintenance; Put an end to the safety hazards caused by leakage, no worries.
2、the machine used in full compliance with the pharmaceutical process requirements of the program operating system; Process parameter setting system, safety protection shutdown system; Automatic alignment system; Operation and automatic recording and printing system, to achieve automatic production, easy to operate.
3、the machine uses high-quality purchased parts, can effectively ensure the quality of the whole machine.
4、the machine is equipped with refined in full compliance with GMP requirements of the hopper, discharge without residue, easy to clean.
5、Our factory produces a series of products for material handling, and the process flow can be formed together with the hopper mixer.
