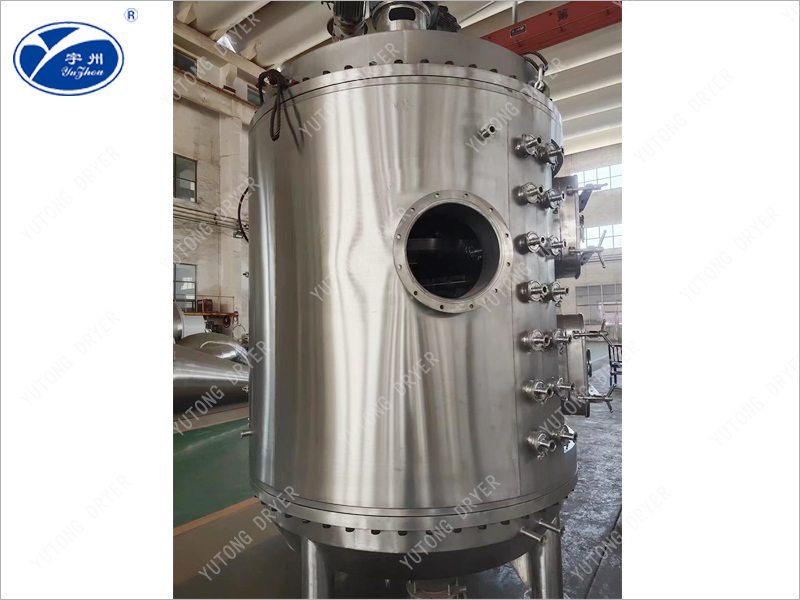

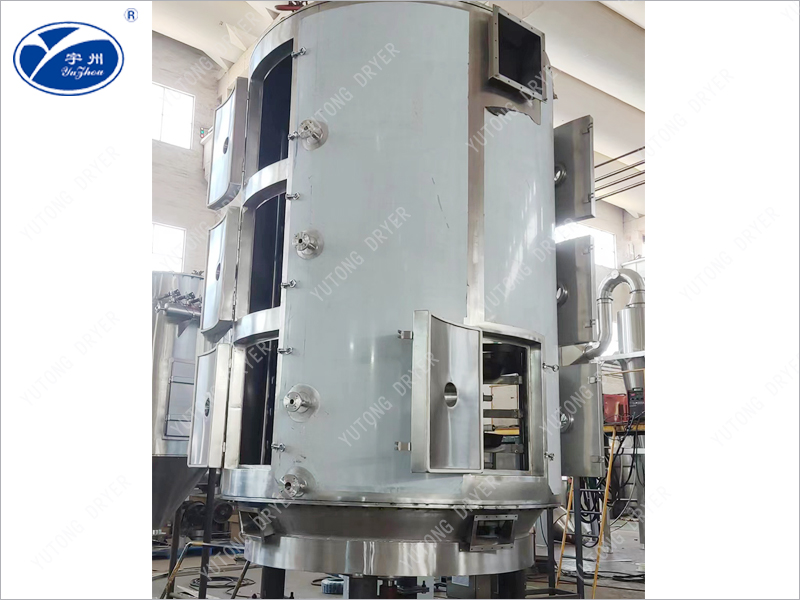

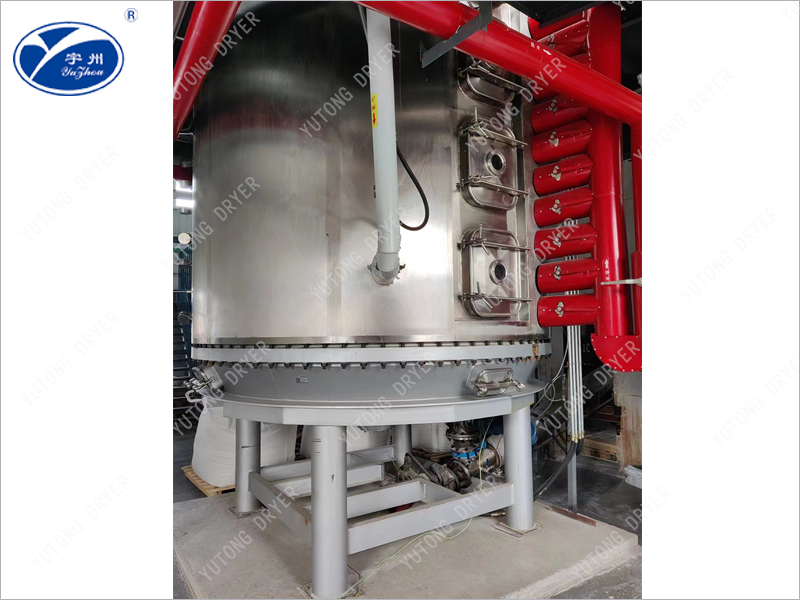

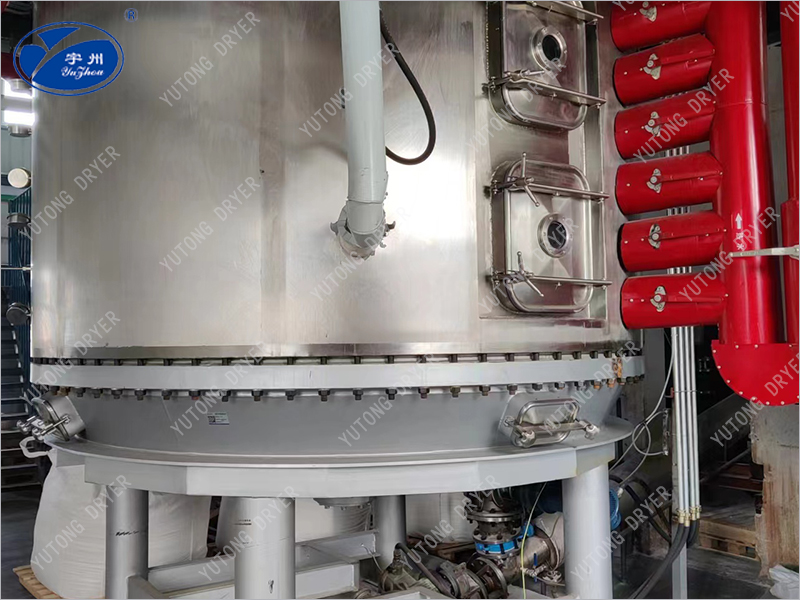

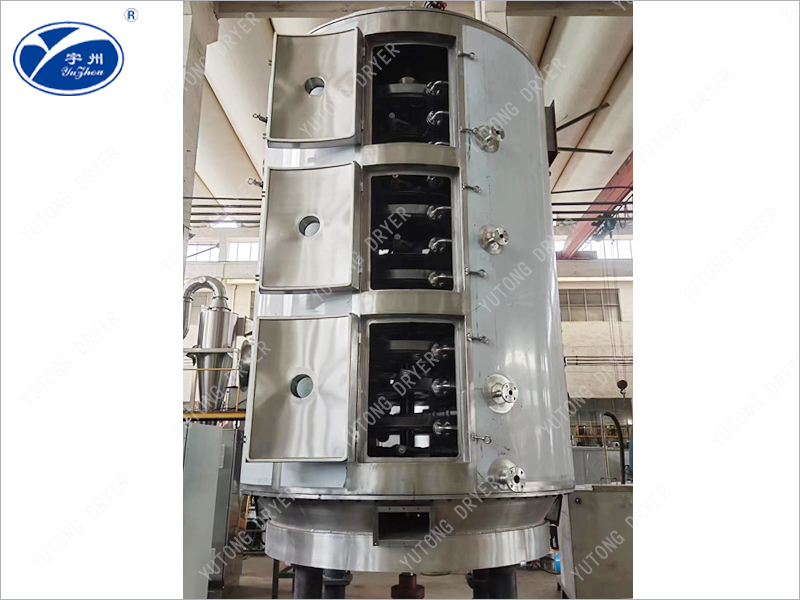

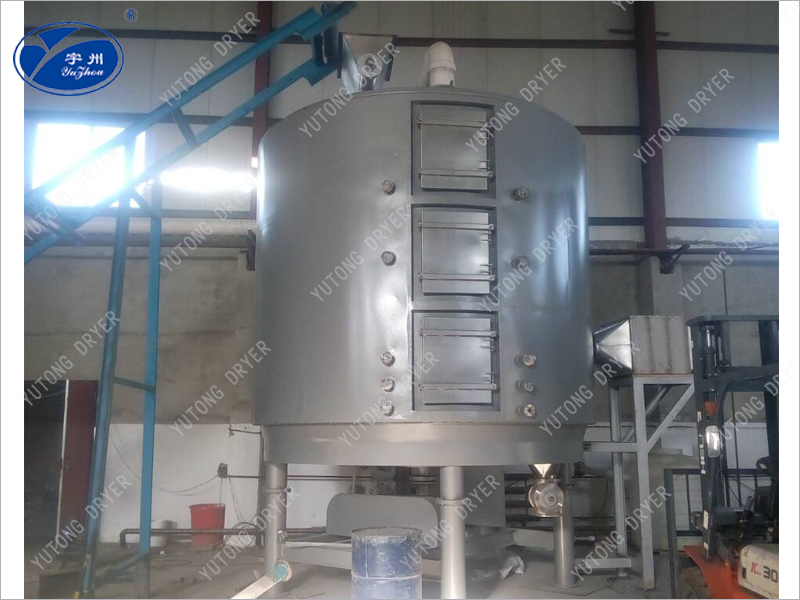

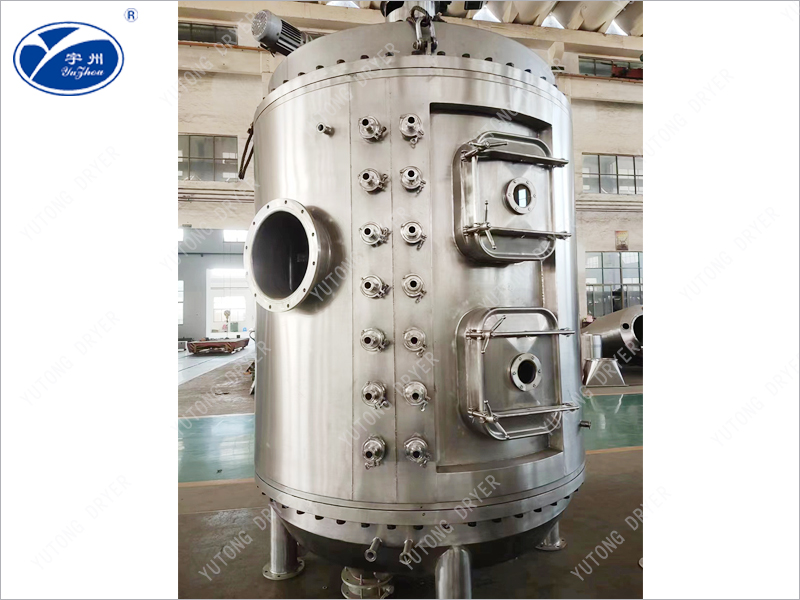

The vacuum disc continuous dryer designed and produced by our company is an improved and innovative energy-saving continuous drying equipment based on the absorption of domestic and foreign technology. Its special structure and working principle determine that it has high thermal efficiency, low energy consumption, small footprint, simple configuration, convenient operation and control. Good operating environment and other characteristics. Widely used in chemical, pharmaceutical, pesticide, feed, new materials and other industries of product drying operations.
The so-called protein powder is generally a powder composed of purified soy protein, or casein protein, or whey protein (lacking isoleucine), or a combination of the above proteins, which is used to supplement protein for people who lack protein. For healthy people, as long as they adhere to a normal diet, protein deficiency usually does not occur. Dairy products, eggs, meat, soybeans, wheat and corn contain complete types of essential amino acids, adequate quantities and appropriate proportions. As long as the food is rich and diverse, it can fully meet the human body's needs for protein, and there is no need to supplement protein powder. Moreover, the psychological enjoyment and sensory stimulation brought by food can not be replaced by protein powder. Too much protein intake is not only a waste, but also harmful to human health.

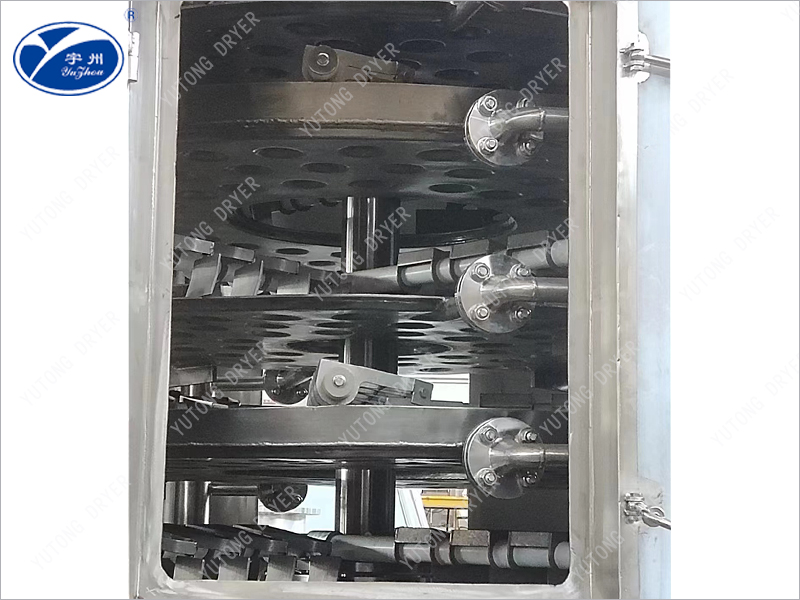

The wet material self-feeder is continuously added to the first layer disc of the drying equipment, and the rake arm with the rake blade makes a rotating motion, so that the rake blade continuously turns over the material, and the material flows through the surface of the drying disc along the exponential helix, and the material on the low drying disc moves to the outer edge, and falls to the outer edge of the high drying disc below. The material on the high drying tray moves inward and falls from the middle to the next layer of low drying tray, and the high and low drying tray is arranged alternately up and down, so that the material can continuously flow through the entire drying equipment. The heating medium is fed into the hollow drying tray, and the heating medium enters from one end to the other end, and the dried material falls from the last layer of drying tray to the bottom of the shell. Finally, it is moved to the feed port by the rake blade. The steam evaporates out through the wet outlet set on the top, and the solvent is recovered by the condenser and then discharged out through the vacuum pump. The dry material flowing from the bottom is cooled and packaged directly.
